SightTracker System

Automatic Visual Assessment from Detection to Response

From Alarm to Visual Context

A perimeter alarm should not leave operators searching for the event. When a SightSensor detects a threat, geospatial intelligence locates the target in real-world coordinates, and SightTracker provides immediate visual context for response.

With SightTracker PTZ, the camera moves to the target, zooms in, and keeps the intruder in frame as the event unfolds. With the SightTracker PTZ Controller, certified third-party PTZ cameras can be steered to detected targets using the same geospatial handoff — so operators know where to look and can focus on the response.

SightTracker PTZ

SightTracker PTZ

Automatic Intruder Tracking PTZ

SightLogix’s purpose-built PTZ automatically locks onto and tracking intruders detected by SightSensors—re-centering the target up to 10 times per second, even beyond the detecting camera’s field of view.

SightSensor NS camera with advanced thermal detection technology

SightTracker PTZ Controller

Automatic PTZ Positioning

The SightTracker controller uses GPS-based target location data from SightSensor smart thermal cameras to automatically position certified third-party PTZ cameras onto detected targets.

How SightTracker Works

SightTracker PTZ integrates embedded AI tracking directly into high-performance PTZ hardware, using the real-world location data generated by SightSensor smart thermal cameras to automatically track human targets with speed and accuracy. Once the target is acquired, SightTracker PTZ continues tracking intruder, keeping the target centered as it moves through the site.

How It Works:

  • Thermal Detection Handoff: SightSensor detects and classifies targets, providing GPS coordinates to SightTracker PTZ
  • AI Classification Tracking: Embedded AI identifies persons and maintains lock-on beyond the detecting camera’s field of view
  • Real-Time Repositioning: PTZ automatically re-centers on target up to 10 times per second with zero operator intervention
  • Intelligent Zoom Control: Automatically adjusts magnification to keep targets optimally sized within the frame

Key Benefits:

  • Lag‑free 10 Hz tracking with 33 × zoom and 360° pan.

  • <±0.15° positioning accuracy plus 150 m IR for clear night ID.

  • Six tracking priorities: including closest, fastest, newest, largest, and more.

  • ONVIF-ready integration with joystick override.

  • 5 MP Sony Starvis sensor for clear visual assessment and event documentation.

  • Embedded AI tracking without extra servers or license fees.

See SightTracker In Action

Automatic PTZ Tracking

SightTracker PTZ Video

Watch in more detail how the SightTracker PTZ and SightSensor camera work seamlessly together to identify, classify and track an intruder.

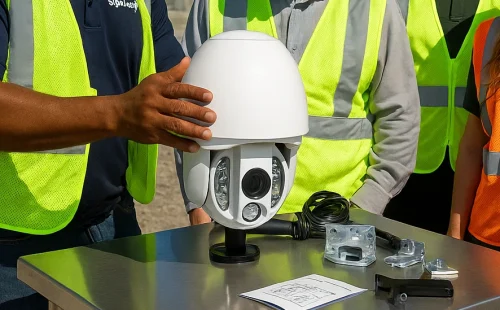

SightLogix security camera installation demonstration on a metal table with workers in safety vests

Product Demonstration

See SightTracker In Action At Your Location

Request a live demonstration to see how SightSensor smart thermal cameras and SightTracker PTZ work together to detect, locate, and automatically track intruders across large outdoor sites..
